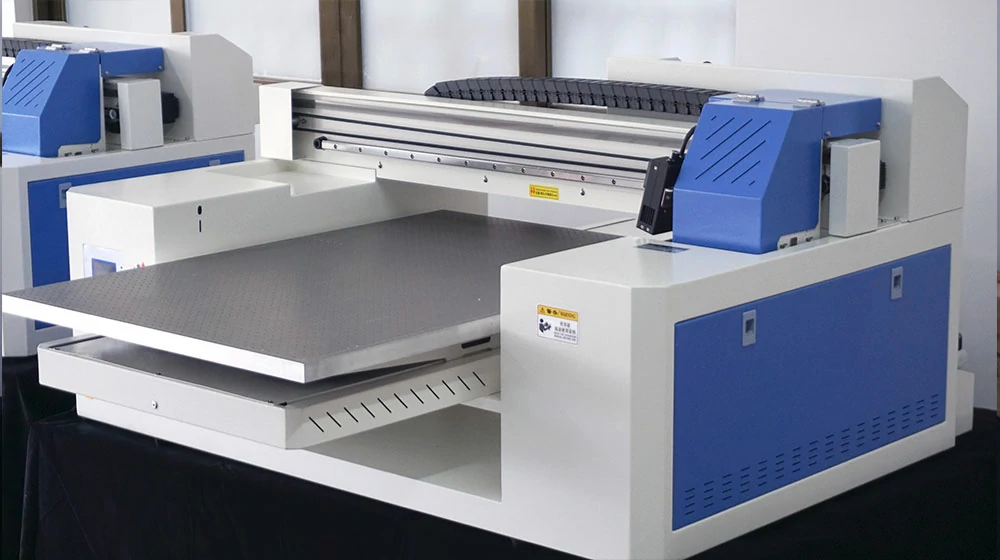

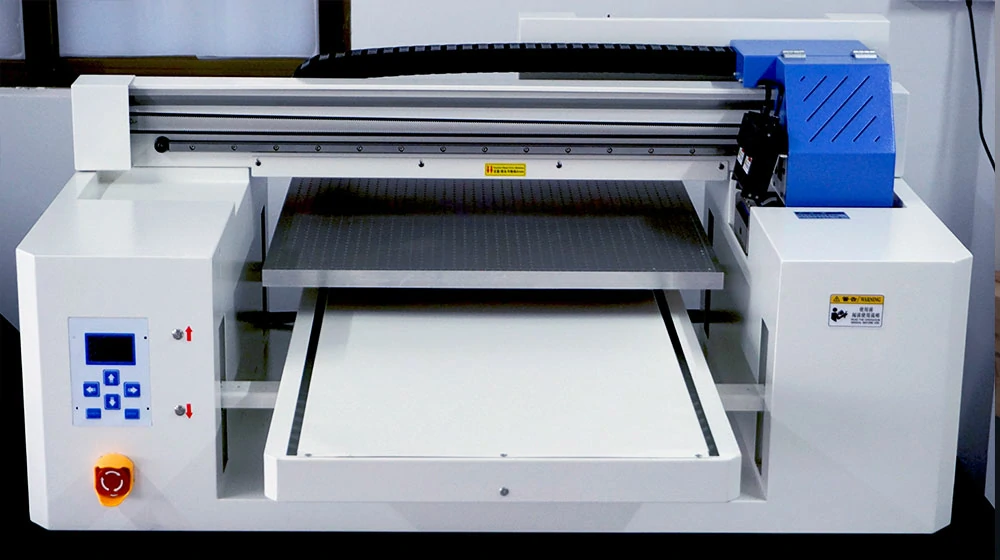

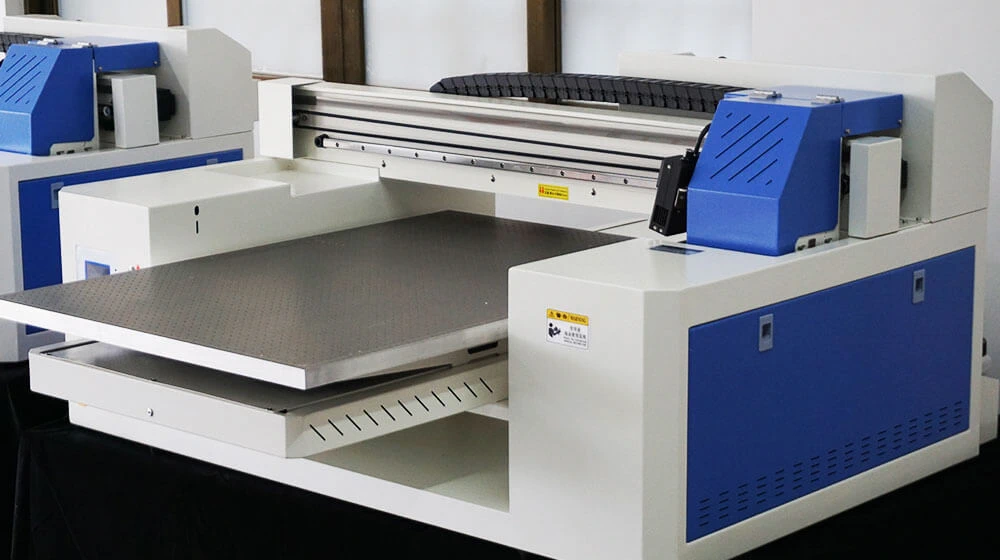

The X6090DH Industrial UV Printer is a Dual Print Head Version full-function UV printer. It can print larger sizes for more applications.
If your printing business requests are below:

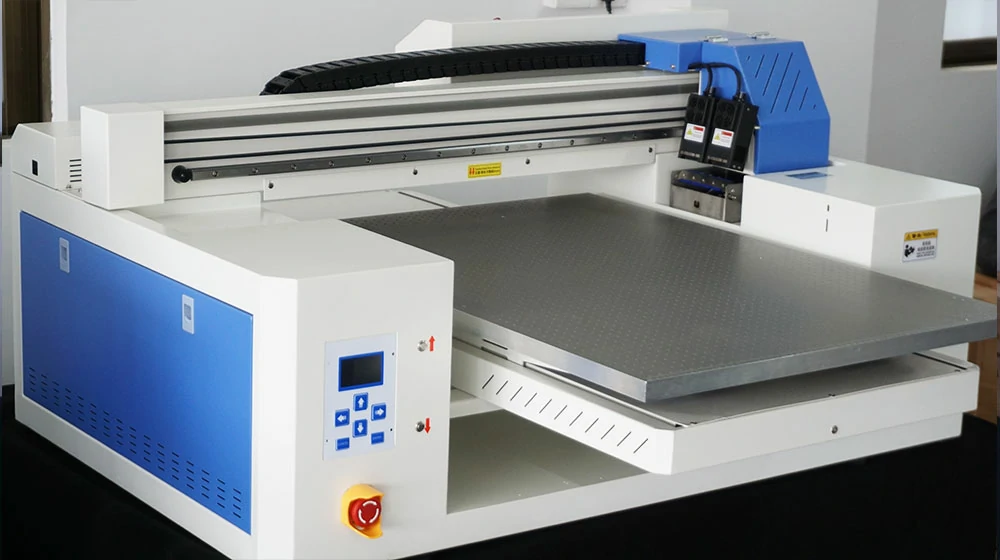

6090 UV printer Industrial Version big format UV flatbed printer. It is suitable to the small/big printing request, also with the medium printer size, it can save a lot of shipping cost for oversea foreign trade buesiness, but it could also working with some medium size printing need.
Video demo of our X6090DH Dual head industrial UV flatbed printer, with this printer you can do flatbed printing, rotary bottle cylinder printing, UV DTF sticker printing, with effects for varnish printing, gold/silver printing embossed printing and etc.
| Print Head: | Epson TX800 / XP600 |
| Print Size: | 600*900mm |
| Print Height: | 0-150mm |
| Ink Supply System: | Auto White Ink Mixing System |
| Cooling System: | Strong AIR Cooling |
| Interface: | USB Cable |
| Working Environment: | 25-30C, 50%, Dust free |
| Rotary Printing | Supported |
| Gold and Silver Foil | Supported |
| Print Head Quantity | Two |
| Color Channel: | CMYK+2W + VVVVVV |
| Support Effect: | Color, White, Varnish, Embossed, UV DTF Sticker |
| Max Printing Speed | 12mins 30x40cm |
| Print Software: | RIP Software |
| PC System Require: | Windows |
| Power: | AC 110/220V, 50Hz/60Hz |
| UV DTF Sticker Printing | Supported |
| Vacuum Table | Supported |

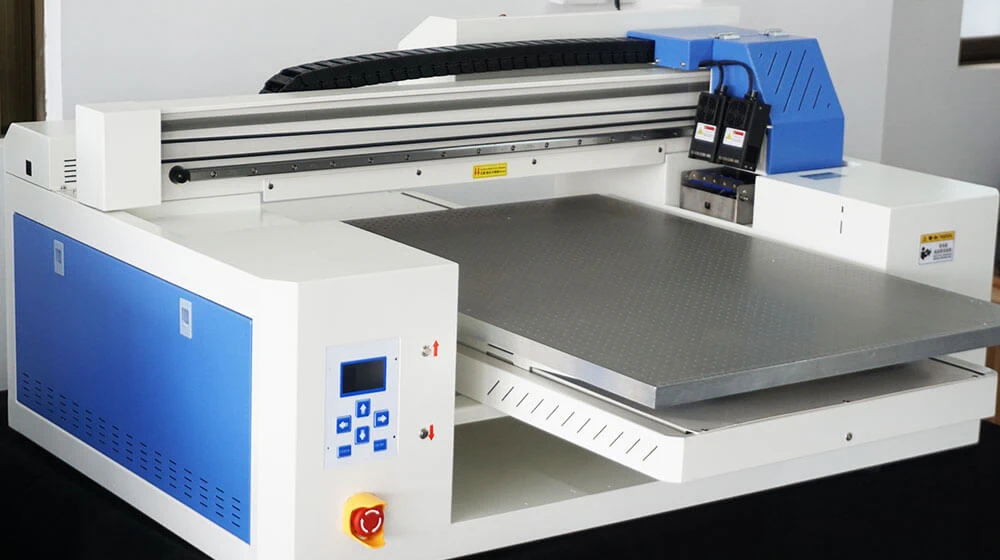

The 6090 stands for a print size of 60×90 cm (23.6×35.4 inches). This format covers most printing needs, from large pieces like oil paintings, decorative wall art, and oversized puzzles, all the way down to small items like business cards and Lego bricks. The 6090 UV printer is highly versatile and offers a very broad printable range.
The 6090 UV printer, with its compact body design, strong adaptability to products of various sizes, and user-friendly operation, is suitable for different types of users. These include individual customization studios, small-batch production shops and factories, as well as in-house prototyping departments in enterprises with high demand for samples.
Compared to large equipment that is two or three meters wide, the 6090 UV printer is a much better fit for personal studios or private custom shops. Its compact design allows it to sit directly on a desktop, taking up very little space. With simple operation, one person can handle the entire process, keeping startup costs low and making it easier to take on custom orders flexibly.
In settings like gift shops on commercial streets, phone case printing stores, or golf ball custom shops, the 6090 UV printer can be placed right in a visible spot inside the store, offering customers a one-stop service from design to printing. Finished products can typically be delivered in a short time, often within an hour, greatly enhancing the customer experience.
The 6090 UV printer serves as a flexible piece of equipment for small-batch production, suitable for orders ranging from a dozen to a few hundred pieces. It can also be used for sample prototyping before mass production, avoiding the need to tie up large equipment capacity and improving overall production efficiency.

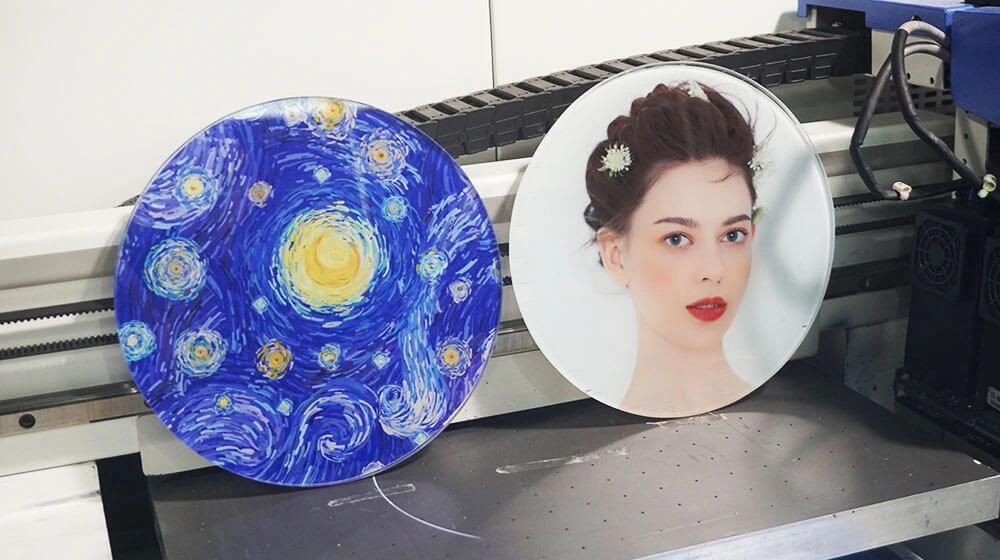

Industries such as automotive interiors and packaging printing often have high demands for prototyping. With a 6090 UV printer on hand, tasks like packaging prototyping and label prototyping can be completed in-house without outsourcing, effectively shortening the prototyping cycle and reducing external costs.
If you’re looking to start a custom printing business, using our 6090 UV flatbed printer gives you more than just the ability to print custom designs. It also allows you to print on a wide variety of material surfaces, and that is equally important. This means you are no longer limited by the material itself. Take custom phone cases as an example, you can print different designs on phone cases made of leather, acrylic, wood, or other materials, easily matching the preferences of different customers and making your custom product lineup much more diverse and appealing.

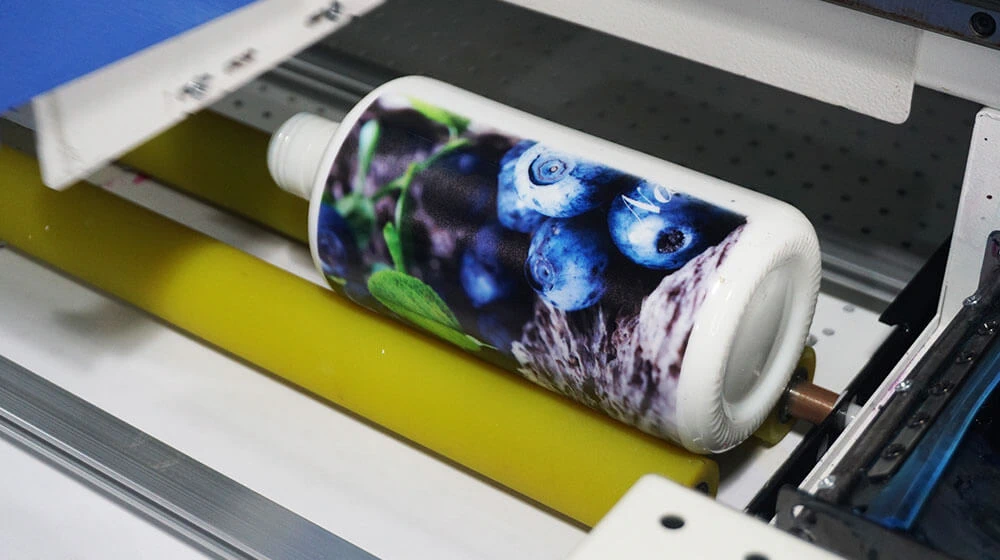

Our 6090 UV printer can print on a wide range of flat products. It can also print on cylindrical objects by attaching a dedicated rotary attachment, such as glass wine bottles, ceramic liquor bottles, round tea canisters, and insulated cups, meeting diverse customization needs.
The 6090 UV printer has a maximum print height of 13 cm. When the uv printer rotary attachment is installed, it can support cylindrical bottles with a maximum diameter of 10 cm, covering most common sizes on the market. During the printing process, the rotary attachment rotates the bottle in sync with the printer, achieving 360° full-coverage printing around the entire bottle surface and ensuring that the finished pattern is complete and consistent.

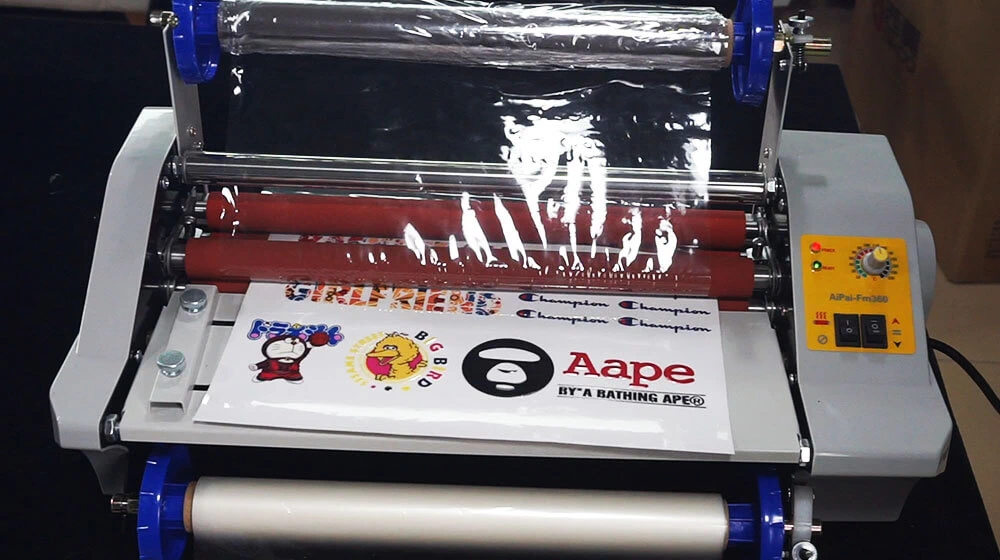

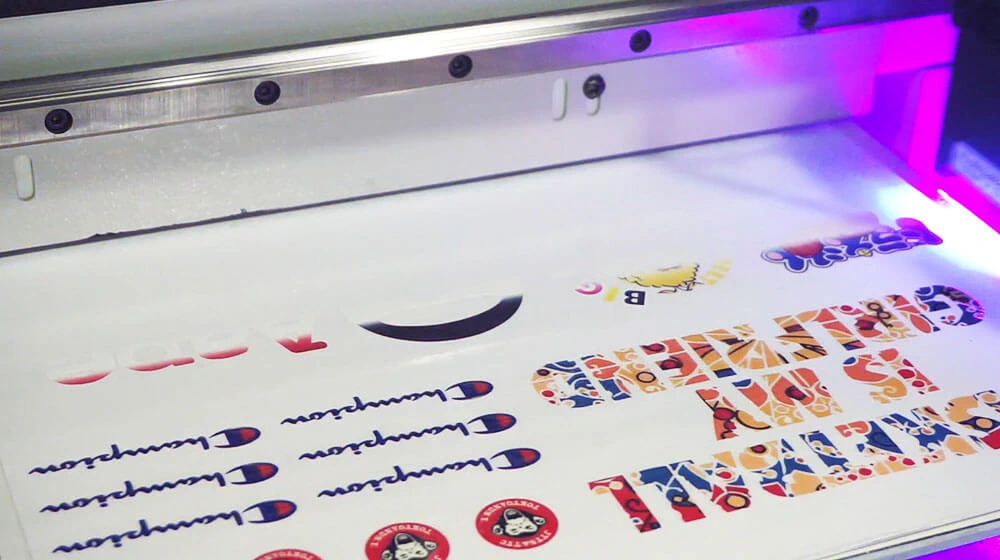

The UV printer 6090 can print directly onto film using UV curing technology, which is Direct to Film (DTF) printing. The typical process involves first printing white ink, color ink, and varnish onto a sticky A-film, then using a laminator to apply a B-film over the A-film to create a crystal sticker. Varnish is a key material in this process, and a single-nozzle printer cannot be loaded with varnish as an extra material. Therefore, if you need to print DTF crystal stickers with a varnish effect, you will need a dual-nozzle 6090 UV printer, where one nozzle is dedicated to printing the varnish.
As a highly customizable printing device, the UV printer 6090 offers excellent adaptability in terms of shape, size, and thickness, allowing you to make flexible adjustments based on your product’s characteristics for precise printing.
The 6090 UV printer uses non-contact inkjet printing technology, where the printhead stays 2-3mm above the product surface for precise ink deposition without ever touching the product. Unlike printing equipment such as card printers that have restrictions on shape, this printer can print on products of any shape.

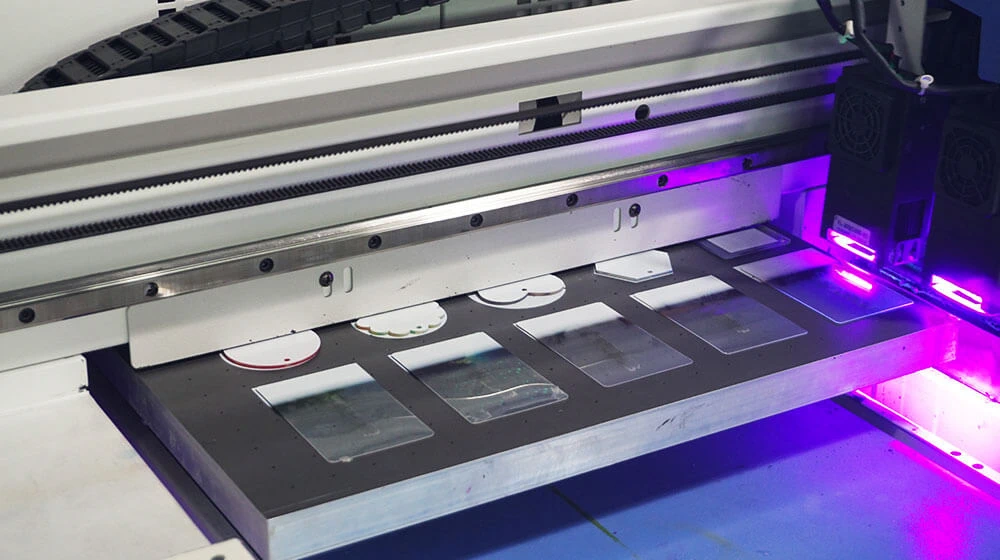

Thanks to its non-contact design, as long as the product dimensions fall within the printer’s printable area, you can print items of various sizes, or even print multiple different sizes in a single run. For example, within the 60×90cm printing area of the 6090 UV printer, you can flexibly print products of different specifications such as 20×20cm or 30×30cm.
This model has a maximum print height of 13cm. Using the lift button, you can freely adjust the height of the printing platform to easily accommodate products of different thicknesses.

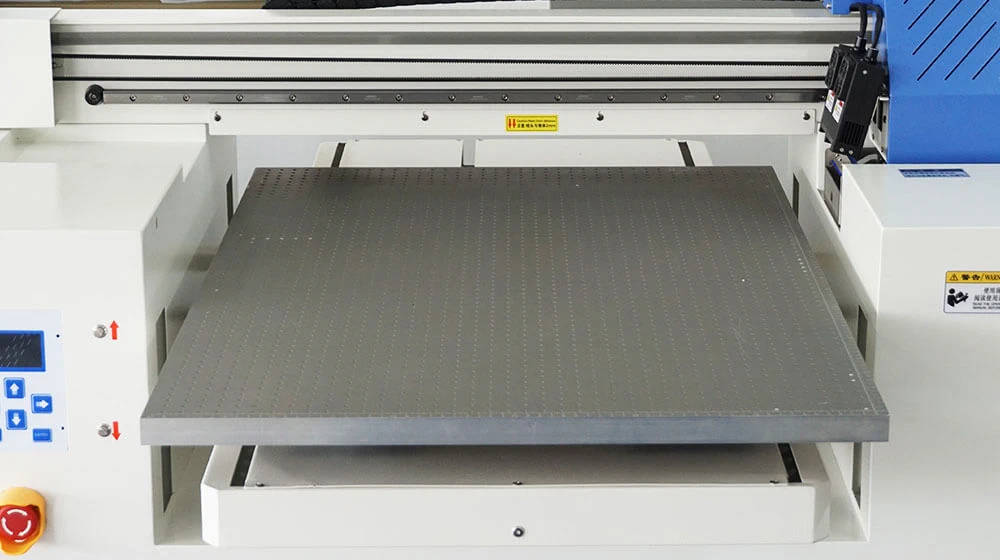

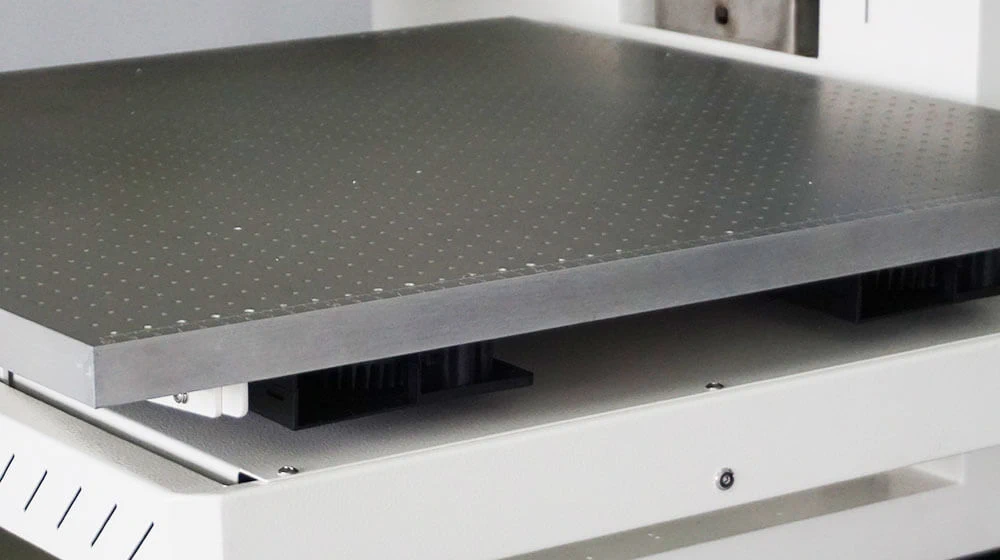

You may have encountered this problem before: when printing thin, flexible materials such as leather, PET film, car wrap vinyl, or paper, the material’s light weight makes it susceptible to air movement from the moving printhead or heat from the UV lamp, causing warping or shifting. When this happens, at best you get misaligned or blurry prints; at worst, the printhead gets scratched or the entire sheet of material is ruined. Our 6090 flatbed UV printer is equipped with a powerful vacuum adsorption system that firmly holds materials like paper and film onto the platen, effectively preventing movement and curling.
What printing effects does the 6090 UV printer support? Our 6090 UV printer supports a variety of effects including solid color, full color, embossed, varnish, gold foil, and UV DTF stickers, all easily selectable in the software with no complex setup required. Below are samples printed with our UV flatbed printer for your reference.
You can choose to print just one color, like pure white or pure black, for minimalist text or logos. The printed design bonds firmly to the surface, making solid-color patterns long-lasting and fade-resistant.
To create rich, colorful patterns, you typically need both white ink and color ink. White ink can be used to create a white base, with color ink printed on top, ensuring perfect color reproduction even on dark-colored products.
The embossed effect is achieved by stacking and curing white ink to create a three-dimensional layer, then printing a layer of color ink on top, resulting in a visually striking 3D color image.

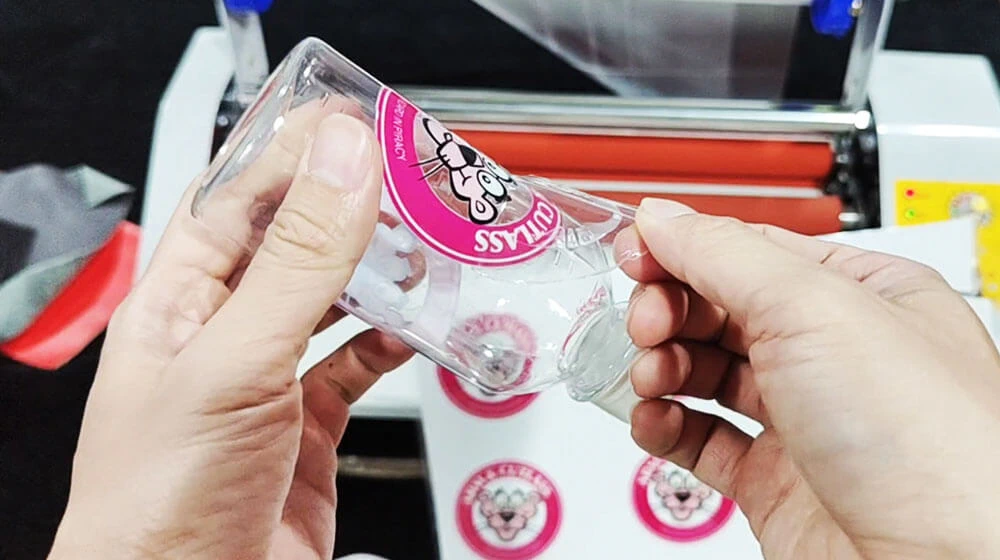

The dual-nozzle 6090 UV printer supports UV DTF sticker printing. The finished stickers can be stored for long periods and transferred onto curved surfaces or products that are too large to fit directly into the printer.
Varnish is a transparent, flowable liquid that is cured by a UV lamp to form a glossy coating. With the 6090 UV printer, you can choose to apply the varnish effect locally or over the entire surface.
Print varnish directly onto the product, then use a heat press to transfer gold foil onto the varnished areas, resulting in a metallic gold decorative effect.

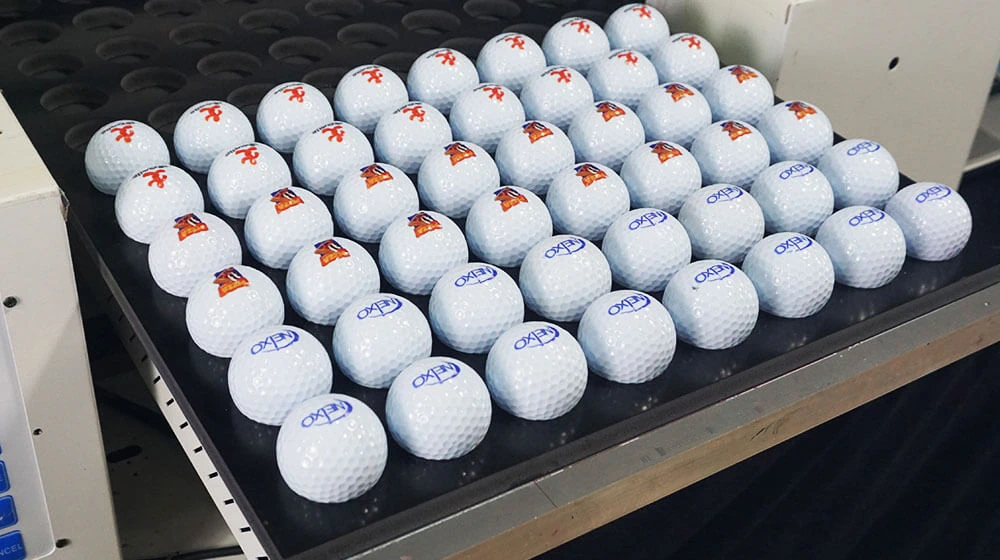

Our 6090 UV printer supports custom Jigs to meet a wide range of printing needs. Supported applications include golf balls, USB flash drives, ballpoint pens, PVC cards, and more. Custom Jig solutions are also available for large-scale production. Feel free to contact us for more details.
High quality Intergraded Circuit control provide a stable power supply system for the machine.
Using Servo motors to keep high precision and stable printing.

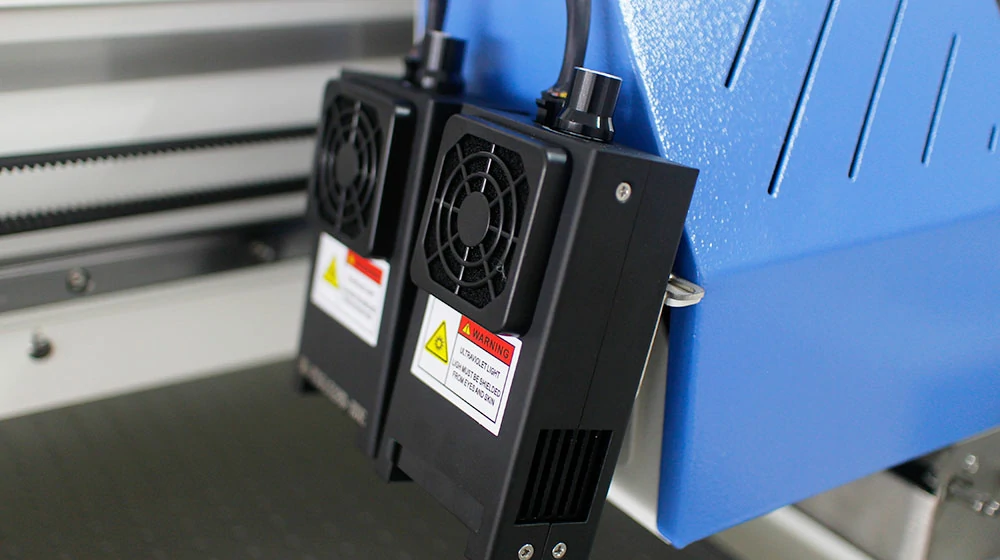

UV lamp is cooled by intergrated cooling fan, it will be stable and easily for maintenance
Timing ink mixer prevent the white ink from deposting

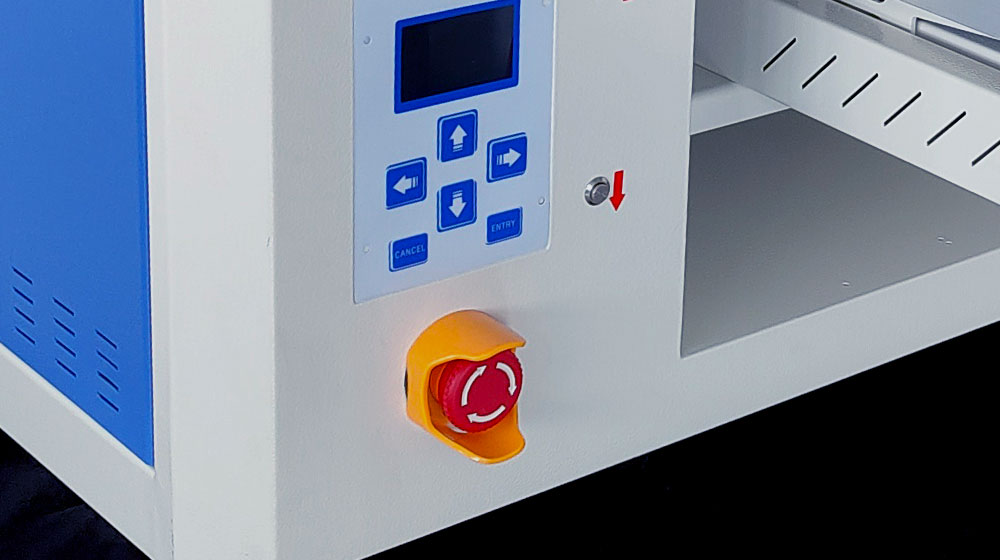

This function will be really helpfully during our printing.It could stop in time to prevent from ruinning the printing material.
All samples showed in our website are printed by our printed. If you have any sample printing requets, please kindly contact us and send us your image, also tell us what you are going to print with our printers we will provide the sample printing for you, FREE of Charge!

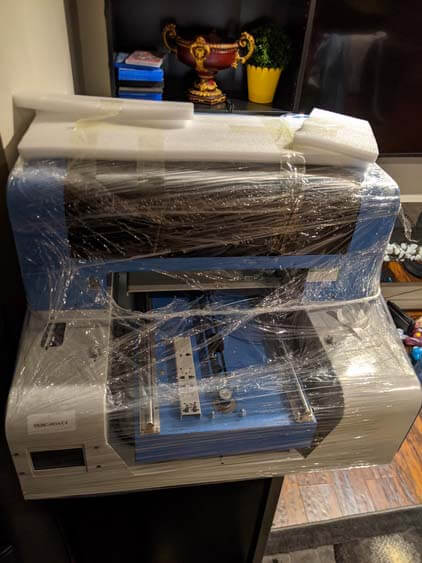

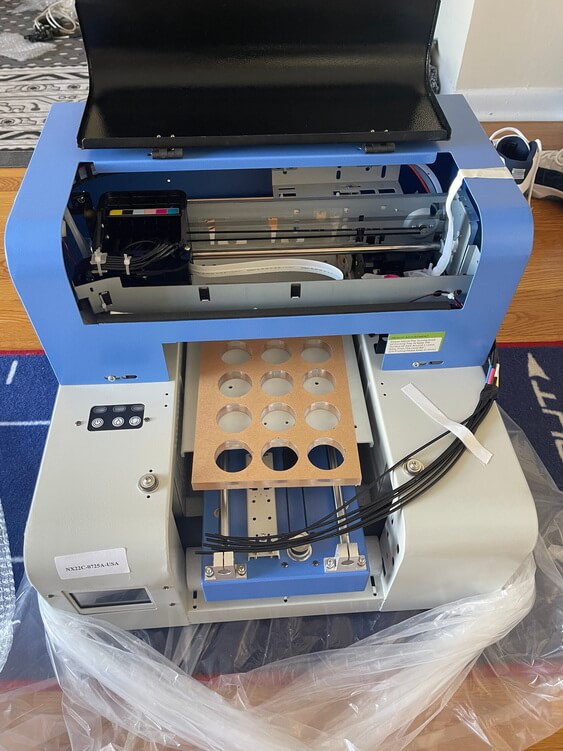

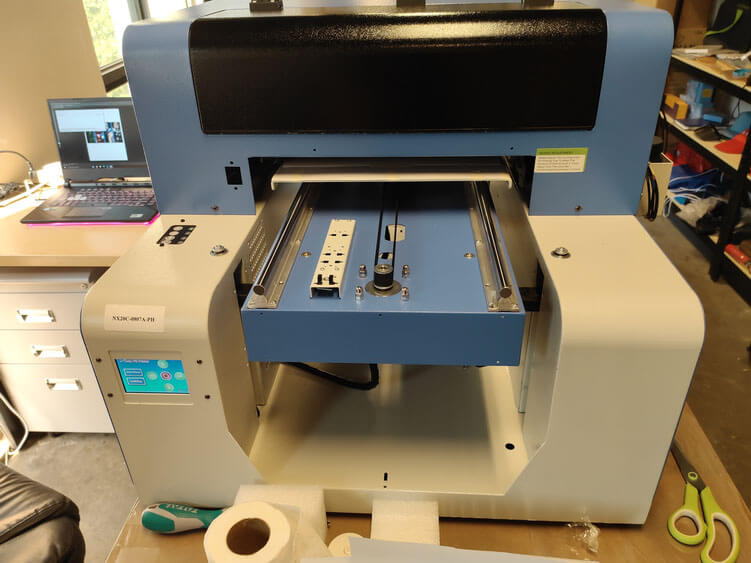

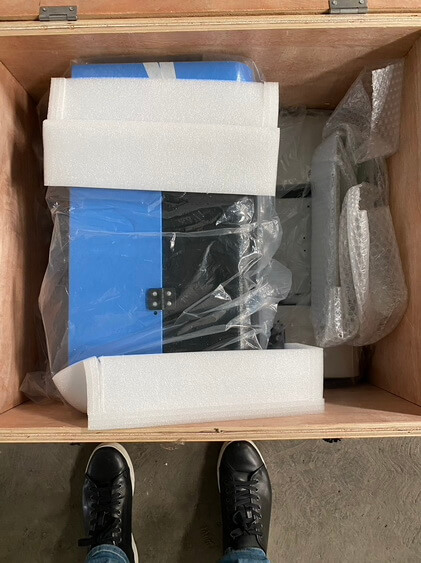

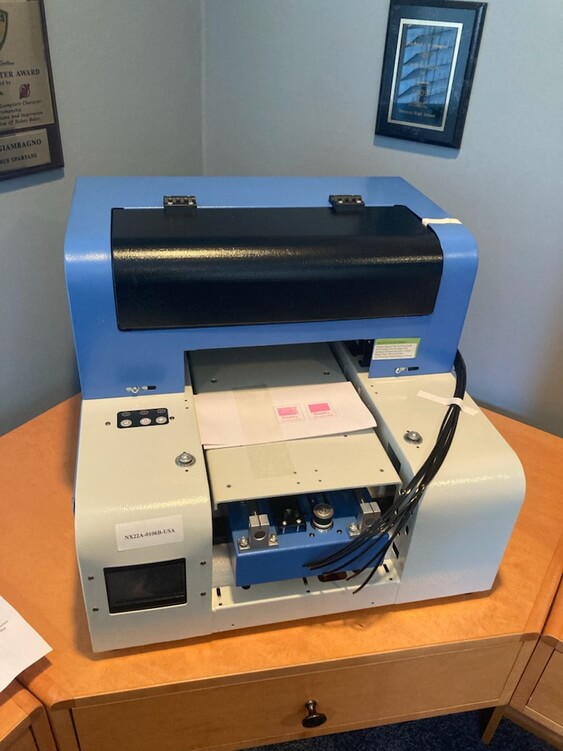

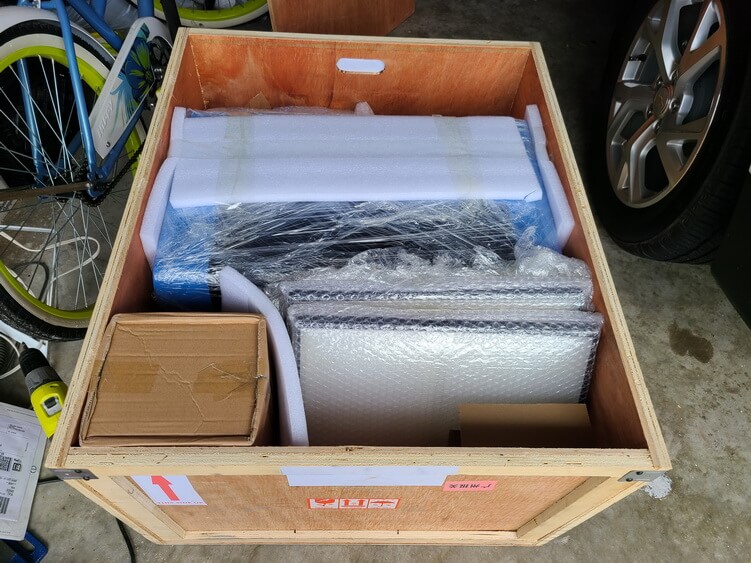

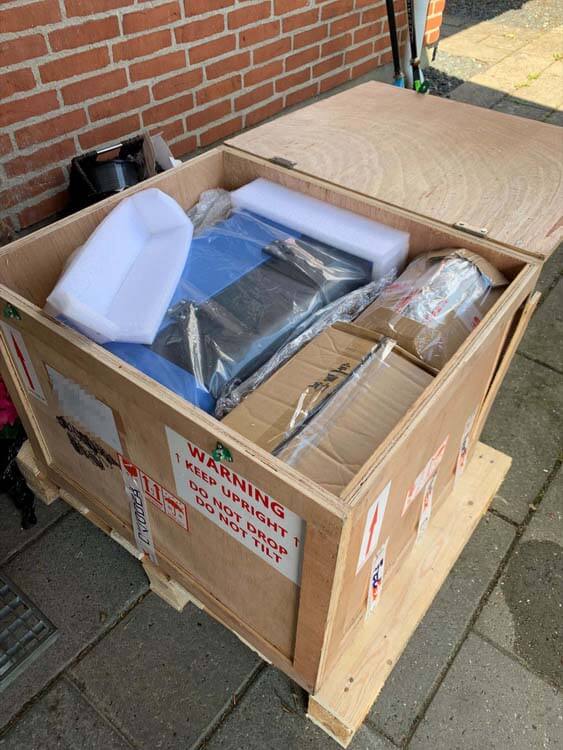

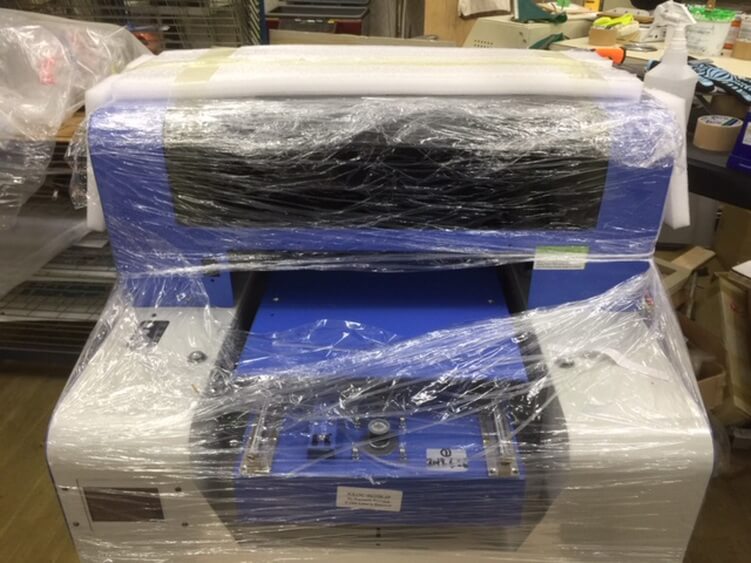

Photos from our horonable customers, when getting the package of printer they are happy with the machine arriving so quick !
All Real Customer review videos of our printer for your reference in below sections for your reference.
We accept Personal And Wholesales order and we can prepare different package for you if you have any special request
All UV printer will be 100% final inspected before packing and sending out. And if we have stock of the reqeusted printer we will be able to send out within 2 working day!
| Product Dimension ： | 120*133.5*58cm |
| Package Dimension : | 130*144*73cm |
| Gross Weight： | 175 KG |
We have our own platform, workshop, factory with 30+ workers, customers come from many countries over the world.
VERY IMPORTANT! When you purchase a machine, the after-sale service is important, many suppliers are only resellers who do not have any experience with printers, maybe they can sell the machine but then do not have the ability to support it. We are the original manufacturer of our printer, we design and produce NEIXO printers in our workshop, and we have an engineering team so we understand our machine well! You will never worry about the service parts as we can provide factory support service.
If you want a larger printing size with varnish supported, rotary supported, UV DTF supported printer, please contact us for this machine, X6090 UV Printer.
You can get a price of this model or send us any question to get any information you would like to know, we will reply to you soonest.
